Cylınder Borıng and Surface-Mıllıng Machınes

STŞ 700 S
Home» Cylınder Borıng and Surface-Mıllıng Machınes» STŞ 700 S
STŞ 700 S

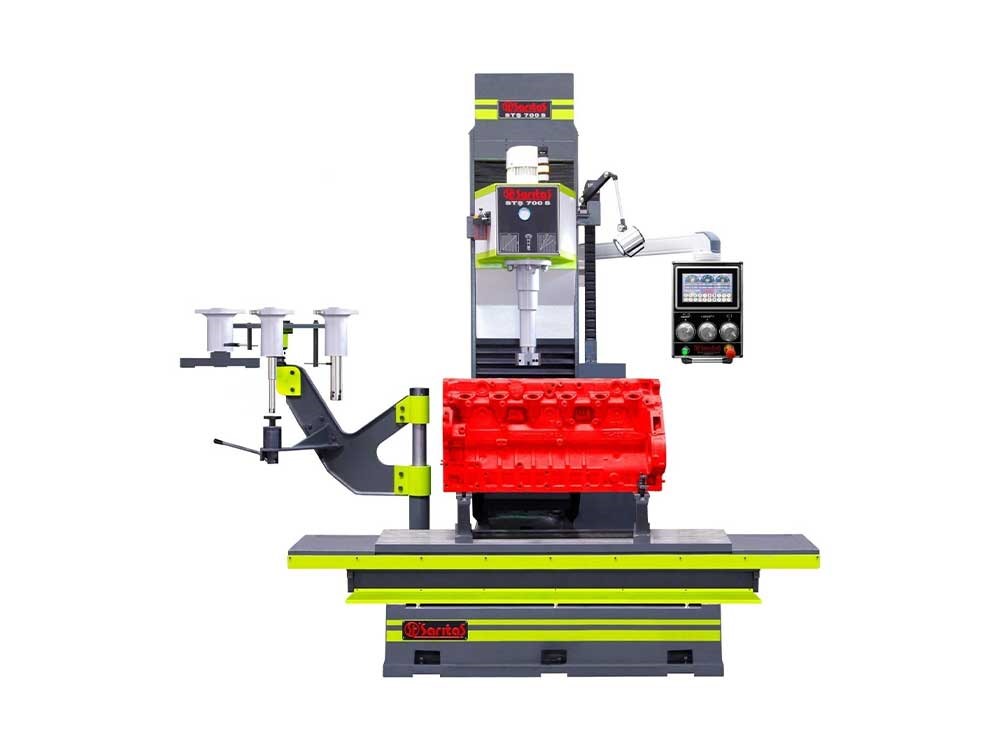

STS 700 S Cylinder Boring and Surface Milling Machine:Is a machine designed for Engine Reconditioning workshops and engine lining manufacturers range from four cylinder and six cylinder engine blocks. Workhead, main body and table is made of high quality cast-iron. The movement of the work head and table is provided via finely ground “V” slides resistant to weariness. Various boring heads are offered as per the cylinder diameter. Offering the boring head working speed in various options, the features like positioning of the feed provide an extreme quick operation and work apportunity. The rotation of the boring spindle feed, table travel speed of the manually and automatically used machines can be adjusted in variable speeds and digitally. The control panel fixed to the body with a hook provides operation in various angles; and offers a low power supply with an ergonomic working apportunity. Through the spindle put into the boring spindle, the process of centering the product is made practically and mechanically exact.

TECHNICAL SPECIFICATIONSSTS 700 S
Maximum vertical travel of the head700 mm
Minimum boring range30 mm
Maximum boring range320 mm
Minimum distance from head to table680 mm
Maximum distance from head to table1380 mm
Distance from spindle center to column375 mm
Spindle rotation speed0÷800 rpm
Speed of spindle feed0÷200 mm/1ʹ
Work head fast movement1000 mm/1ʹ
Table surface500x1700 mm
Maximum longitudinal travel of table1500 mm
Maximum traverse travel of table130 mm
Milling cutter diameter420 mm
Table automatic movement speeds 0÷500 mm/1ʹ
Table fast movement speed1000 mm/1'
Spindle motor power2,2 kw AC motor
Work head fast movements motor power1 kw servo motor
Table movement motor power0,40 kw servo motor
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
--------- 0000
CODESTANDARD EQUIPMENTSADET / QUANTITY
STD 78210 inch touch screen panel

1

STD 783PLC system for touch screen panel and servo motors

1

STD 784X axis servo  motor

1

STD 785Z axis servo motor

1

STD 786X axis handwheel encoder

1

STD 787Z axis handwheel encoder

1

STD 788Y axis digital linear encoder

1

STD 789Remote access device

1

STD 790Boring head (Ø 35x58 mm)

1

STD 791Boring head (Ø 58x85 mm)

1

STD 792
Boring head (Ø 80x125 mm)

1

STD 793CBN and PCD surface milling head with inserts (Ø 9.52 mm 1 pcs CBN 1 pcs PCD) Milling capacity Ø420 mm with cover system1
STD 794Cylinder centering device

1

STD 795Tool setting device complete with micrometer1
STD 796Toll setting device for (Ø 35x58 mm) boring head with dial gauge

1

STD 797Parallel supports (130x590 mm)

2

STD 798Parallel supports (230x590 mm)

2

STD 799Workpiece clamping plates

4

STD 800T-canal bolts

8

STD 801Universal setting -up fixture ''V'' blocks (Single spindle)

1

STD 802Ø 16x32 mm left side cartridge (for Ø 58 and Ø 80 mm boring head)

1

STD 803Ø 16x40 mm left side cartridge (for Ø 58 and Ø 80 mm boring head)

1

STD 804Ø 16x50 mm left side cartridge (for Ø 58 and Ø 80 mm boring head)

1

STD 805Ø 16x60 mm left side cartridge (for Ø 58 and Ø 80 mm boring head)

1

STD 806Ø 16x70 mm left side cartridge (for Ø 58 and Ø 80 mm boring head)

1

STD 807Ø 10x18 mm left side cartridge (for Ø 35x58 mm boring head)

1

STD 808Ø 10x25 mm left side cartridge (for Ø 35x58 mm boring head)

1

STD 809Ø 10x25 mm chamfering cartridge (for Ø 35x58 mm boring head)

1

STD 81020x20x40 mm 45 degree chamfering cartridge

1

STD 81120x20x70 mm 45 degree chamfering cartridge

1

STD 812Cutting bits for Ø 16 mm cartridge (for Ø 58 and Ø 80 mm boring head)

10

STD 813Cutting bits for Ø 10 mm cartridge (for Ø 35x58 mm boring head)

5

STD 814Cutting bits for 45 degree chamfering cartridge

5

STD 815Set of service tools

1 set

STD 816Spot light

1

STD 817Balancing nuts and rubbers

1

STD 818Operating manual

1

1

------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
------ -------

1
CODEOPTIONAL EQUIPMENTS
SR 0722CBN and PCD surface milling head with inserts (Ø 9.52 mm 1 pcs CBN 1 pcs PCD) Milling capacity Ø420 mm with cover system1
SR 0723Surface milling head with plate (Ø 420 mm)1
SR 0724Special boring head for drilling (Collect type clamping of drilling from Ø 5 mm to Ø 35 mm capacity)

1

SR 0725Special boring head for milling tooling with BT 40 tool holder and Ø 80 and Ø 120 mm milling head (height of head 350 mm)1
SR 0726Special boring head for cylinder liner seat counter boring (Ø 125x170 mm height of head 300 mm)1
SR 0727Head for boring range : Ø 125÷170 mm1
SR 0728Head for boring range : Ø 165÷200 mm1
SR 0729Head for boring range : Ø 215÷260 mm1
SR 0730Head for boring range : Ø 260÷320 mm1
SR 0731Pair of guick setting up fixture for engine block of cars : Ø 35÷70 mm

1

SR 0732Pair of guick setting up fixture for engine block of trucks : Ø 45÷90 mm

1

SR 0733Boring and surface milling heads storing and loading fixture

1

SR 0734Universal setting-up fixture for “V” blocks complete with 30° and 45° reference square

1

SR 0735Setting-up fixture with automatic centering for cylinder liners clamping : Ø 60÷150 mm)

1

SR 0736Setting-up fixture with automatic centering for cylinder liners clamping : Ø 150÷300 mm)

1

SR 0737Boring and surface milling heads storing and loading fixture

1

SR 0738Vertical column slide up and down bellow system

1

SR 0739Grinding for tools complete with sharpening supports

1

SR 0740Ø 16x32 mm left side cartridge (for Ø 58 and Ø 80 mm boring head)

1

SR 0741Ø 16x40 mm left side cartridge (for Ø 58 and Ø 80 mm boring head)

1

SR 0742Ø 16x50 mm left side cartridge (for Ø 58 and Ø 80 mm boring head)

1

SR 0743Ø 16x60 mm left side cartridge (for Ø 58 and Ø 80 mm boring head)

1

SR 0744Ø 16x70 mm left side cartridge (for Ø 58 and Ø 80 mm boring head)

1

SR 0745Ø 16x60 mm surface milling cartridge (for surface milling head)

1

SR 0746Ø 10x18 mm left side cartridge (for Ø 35x58 mm boring head)

1

SR 0747Ø 10x25 mm left side cartridge (for Ø 35x58 mm boring head)

1

SR 0748Ø 10x25 mm left side cartridge (for Ø 35x58 mm boring head)

1

SR 074920x20x40 mm 45 degree chamfering cartridge

1

SR 075020x20x70 mm 45 degree chamfering cartridge

1

SR 0751Cutting bit for Ø 16 mm cartridge (for Ø 58 and Ø 80 mm boring head)

1

SR 0752

Cutting bit for Ø 10 mm cartridge (for Ø 35x58 mm boring head)

1

SR 0753Cutting bit for chamfering cartridge

1

SR 0754Cutting bit for surface milling cartridge

1

SR 0755Ø 10x45 mm L type welding system cutting tool (height of L dimension 20 mm)

1

SR 0756Ø 16x40 mm L type welding system cutting tool (height of L dimension 20 mm)

1



SR 0757

Ø 16x50 mm L type welding system cutting tool (height of L dimension 32 mm)1
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
------- ------

—
DIMENSIONS
Length2500 mm
Height2600 mm
Width1260 mm
DIMENSIONS WITH PACKING
Length2600 mm
Height2750 mm
Width1390 mm
WEIGHTS
Without packing2890 kg
With packing3170 kg
